LINKED PLATE OPENING / AUTOMATIC OPERATION
Automatic Quick Opening Filter Press
Open the linked plate pack together after filtration, reducing the need to shift plates individually. Evaluate cake release, automation and system layout around your production duty.
Send your slurry details, production requirement and current cycle times if available.
Opening arrangement
Linked platesSupplier-described chain connection opens the plate pack together.
Process mode
Batch filtrationQuick opening is one stage within the complete filtration cycle.
Selection basis
Cake releaseReview discharge behavior and downstream handling as well as opening motion.
Linked Plate Movement for the Opening Stage

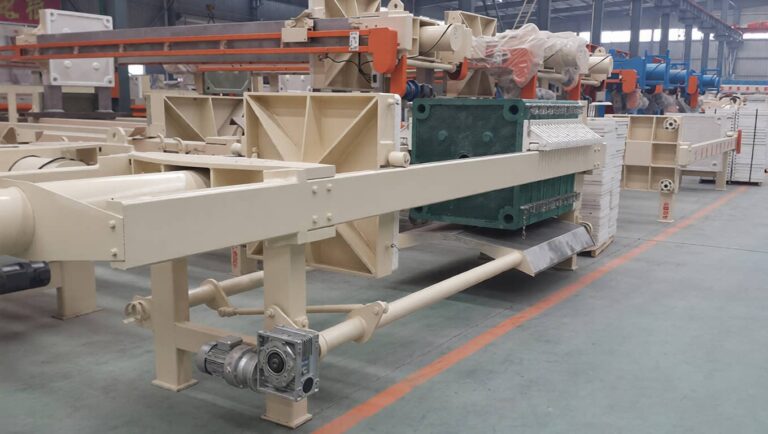

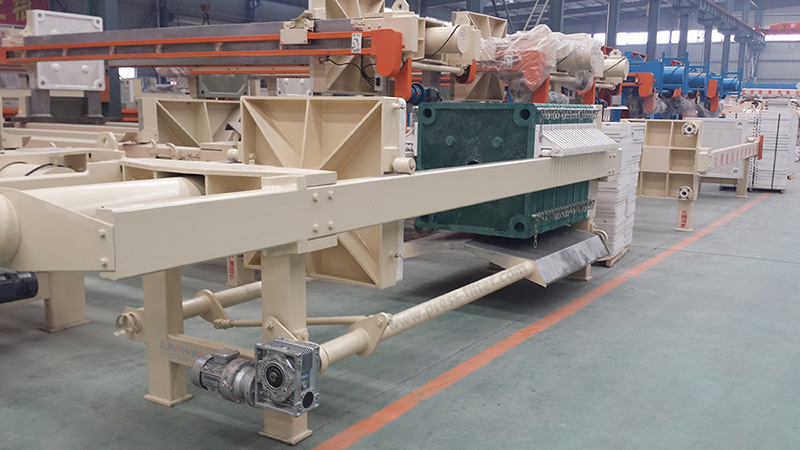

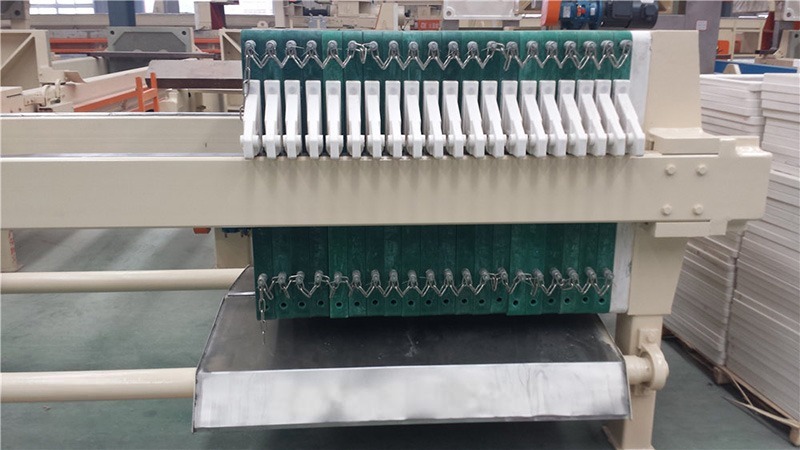

Supplier photograph showing the linked plate arrangement.
How the plate pack opens
The supplier describes a chain connecting the filter plates so that the plate pack can be opened together. This differs from shifting each plate separately after filtration.
The practical benefit depends on how the cake releases, how the discharged solids are collected and how much of the current cycle is spent opening and unloading. Compare the complete sequence for the actual material.
Coordinate plate opening
Review the linked opening stroke, plate spacing and control sequence for the proposed press.
Plan cake handling
Make sure the hopper, conveyor or receiving arrangement can handle the discharge pattern.
Compare the complete cycle
Measure opening, discharge and cleaning separately from feeding and filtration to locate the real bottleneck.
Technical Configuration & Quotation Checklist
Specify the complete press and its operating requirements before choosing a size. Filter area, chamber volume, pressure ratings, opening time and overall dimensions are confirmed for the quoted configuration.
| Item | Selection basis | Confirm in the quotation |
|---|---|---|
| Opening mechanism | Linked plate arrangement | Opening sequence, plate spacing, stroke and access for maintenance. |
| Plate pack & capacity | Sized for the filtration duty | Plate type and dimensions, filtration area, chamber volume, plate quantity and cake thickness. |
| Pressure & materials | Matched to the slurry | Feed pressure, closing requirements, wetted materials, seals and any separate squeeze system. |
| Automation | Functions defined individually | Feeding, plate movement, discharge, washing and cleaning sequence; confirm which items are included. |
| Electrical & utilities | Project-specific requirements | Motor and pump duties, supply voltage/frequency, water and compressed-air requirements where applicable. |
| Discharge & installation | Integrated with the plant | Hopper or conveyor, clearances, lifting, guarding, inspection arrangements and delivery scope. |
Opening time and cake discharge time are different measurements. Agree the feed conditions, timing boundaries and required operator involvement before comparing performance.
Configuration reference: supplier quick opening filter press product information, reviewed 29 September 2026. Request a model-specific technical schedule for the proposed equipment.
Where Quick Opening Fits in the Filtration Cycle
The material still passes through a batch filtration cycle. Linked plate movement acts after the filtration stage; it does not by itself determine filtration rate or final cake moisture.
01
Feed & filter
Close and secure the plate pack, feed the slurry and form the cake while filtrate is collected.
02
Depressurize & open
Complete the specified process steps and verify depressurization before opening. The linked mechanism then moves the plate pack according to the approved sequence.
03
Discharge & prepare
Release and collect the cake, inspect or clean as required, then close the press for the next cycle.
Cake washing, air blow, membrane squeezing and cloth washing depend on the selected equipment. List them separately in the agreed scope.
When a Quick Opening Arrangement Is Worth Evaluating
Opening is a meaningful delay
Your measured cycle includes substantial plate-opening or manual handling time. Improving this stage may create a useful opportunity.
Cake release is manageable
The cake separates in a way that suits the proposed opening and handling arrangement. Sticky or incomplete cakes require specific evaluation.
The rest of the system can keep up
Feeding, filtration, cake reception and cleaning can support the desired schedule. Faster plate movement alone does not establish higher daily output.
Review the Duty for Your Application
Mining & mineral processing
Compare solids loading, filtration time and cake release for the actual concentrate or tailings. Check how the receiving system handles a discharge event.
Stone, ceramics & sand washing
Review slurry variability, cycle frequency, cake handling and water-reuse requirements. Base the opening arrangement on representative operating conditions.
Chemical, wastewater, food and other process duties require their own compatibility and operating review. An industry name alone does not establish suitability.
Maintenance Access Is Part of the Selection
Plates, cloth & seals
Plan cleaning and inspections for cloth condition, sealing surfaces and cake release. Replace damaged consumables according to the equipment instructions.
Linked mechanism & hydraulics
Allow access to connections, moving parts and lubrication points. Follow the specified inspection and lubrication schedule rather than assuming the mechanism is maintenance-free.
Controls & operating sequence
Define checks for sensors, interlocks and the automatic sequence. Keep maintenance and fault records, and use the documented isolation procedure for servicing.
Compare Opening Features Separately from Plate Structure
Quick opening describes a movement and discharge arrangement. Recessed chamber and membrane describe the filtration plate configuration. Discuss their compatibility for the proposed machine rather than treating these as mutually exclusive product types.
Questions Before Requesting a Quick Opening Press
How does the opening mechanism differ from a plate shifter?
The supplier describes linked plates opened together. A sequential shifter moves plates individually. Compare the exact mechanism, opening sequence and required maintenance for the equipment offered.
Does quick opening guarantee a shorter total cycle?
No fixed cycle-time saving applies to every duty. The opening step is only part of the cycle, and cake release, filtration, feeding and cleaning can remain limiting factors.
Will it discharge sticky cake automatically?
Evaluate representative cake release before relying on unattended discharge. Any additional release aid or operator intervention must be included in the operating plan.
Can it be combined with membrane plates?
Confirm compatibility for the specific press, plate pack, opening arrangement and controls. A membrane squeezing system adds its own requirements and is not assumed to be included.
Which specifications are needed for a quotation?
Provide material properties, throughput and units, target cake condition, operating hours and any current cycle breakdown. The proposal should then confirm model-specific area, chamber volume, pressure, utilities, dimensions and included functions.
How should opening performance be accepted?
Agree what is timed: movement of the plates, complete cake discharge, or the total cycle. State the material, cake condition, number of plates, operator tasks and downstream handling used in the assessment.
CONFIGURATION & QUOTATION
Discuss Your Plate Opening and Discharge Requirements
Tell us what you are filtering, the required throughput and units, operating hours and project location. If replacing an existing press, include the current plate count and a breakdown of the cycle.
Useful details include feed solids, cake release behavior, target cake condition, available space, electrical supply and the receiving hopper or conveyor.
Technical ratings, included functions and performance conditions are confirmed in the project proposal.
